| XB Milling Machine Series |
|

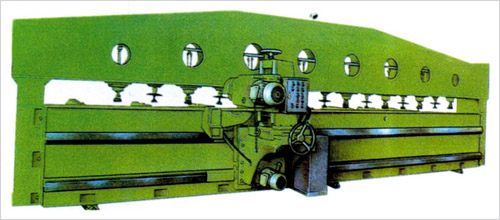

XB Milling Machine Series
|
| The aircraft is to absorb foreign technology innovation to milling and planing of advanced, efficient milling equipment for milling steel straight edge, bevel and U-groove, is currently the best manufacturer of metal machinery and equipment, the specifications are: XB -6, XB-9, XB-12, XB-16 |
|
|
|
Technical Parameters
|
| Name │Parameters │ Model
|
XB-6
|
XB-9
|
XB-12
|
XB-16
|
| Milling angle (°)
|
0-45°
|
| Machined plate thickness (mm)
|
6-50
|
| Hypotenuse of a maximum milling width (mm)
|
20
|
| Binder force single cylinder (t)
|
1.2*7
|
1.2*11
|
1.2*15
|
1.2*20
|
|
Hydraulic system pressure (MPa)
|
1.5
|
| Feed motor power (kw)
|
1.1/1.5
|
| Milling Motor Power (kW)
|
2.2/3
|
| Pump motor power (kw)
|
5.5
|
5.5
|
5.5
|
5.5
|
| Dimensions (a * b * c) (mm)
|
7820*2240*1950
|
10820*2240*1950
|
13820*2240*1950
|
17820*2240*1950
|
|
| | |   |
|
|
